05 Downlights Fixed > The Dark Light Downlights CCT V
.jpg)
10107ED/W/V

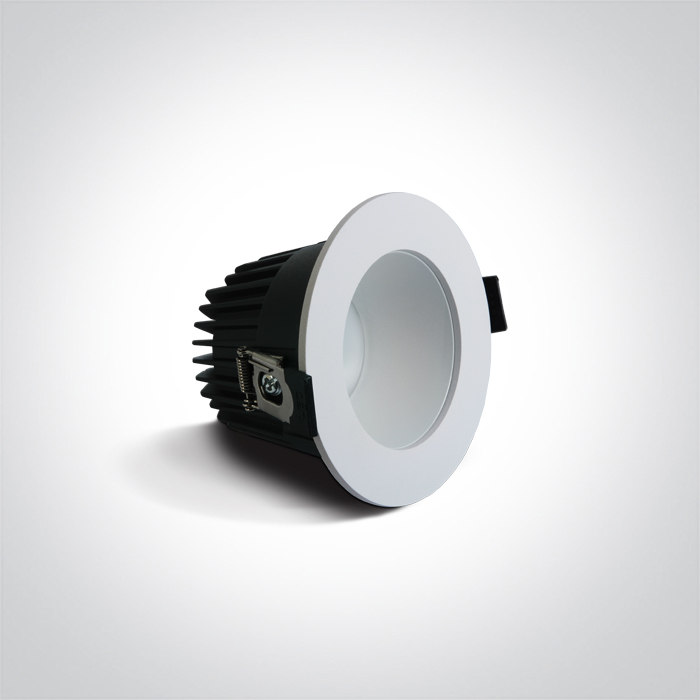

7W CCT Variable LED recessed downlight, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

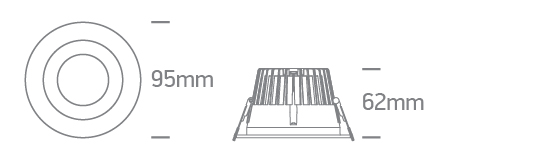

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Dark Light Downlights CCT V
Order Code
10107ED/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
62mm
Diameter
95mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Input Current
160mA
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
160mA
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
60
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.242kg
Pcs/Carton
50
Barcode
5291889085331
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
