02 Recessed Spots Fixed LED > The Fire Rated IP65 Range
10107DF/W

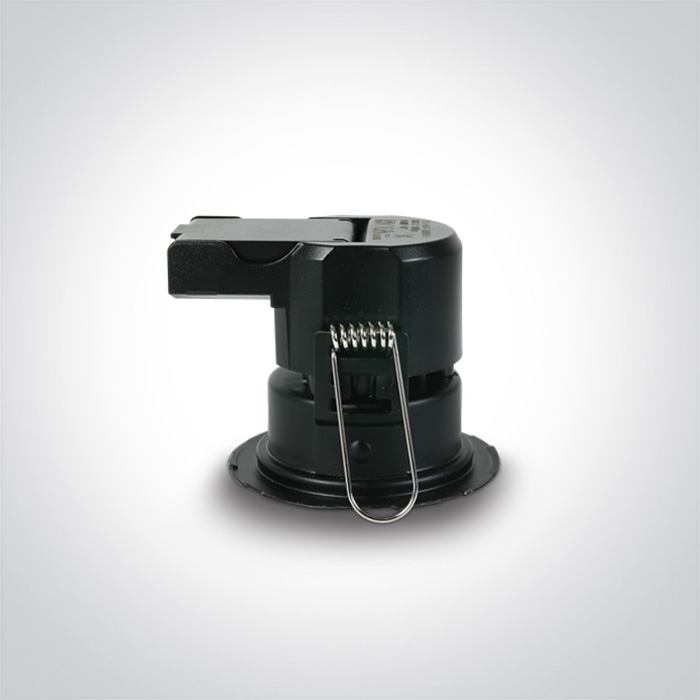

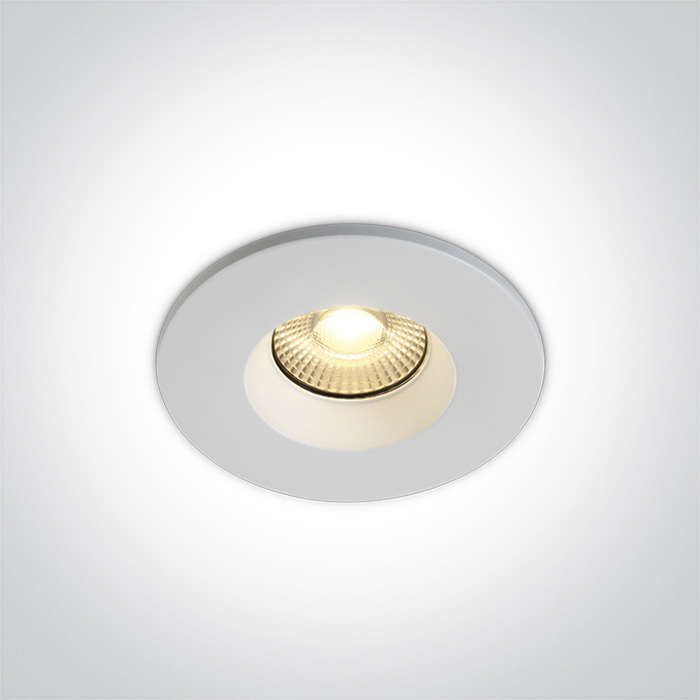

7W COB LED Fire Rated 90 minutes recessed Spot, IP65.
Supplied with Triac dimmable LED driver.

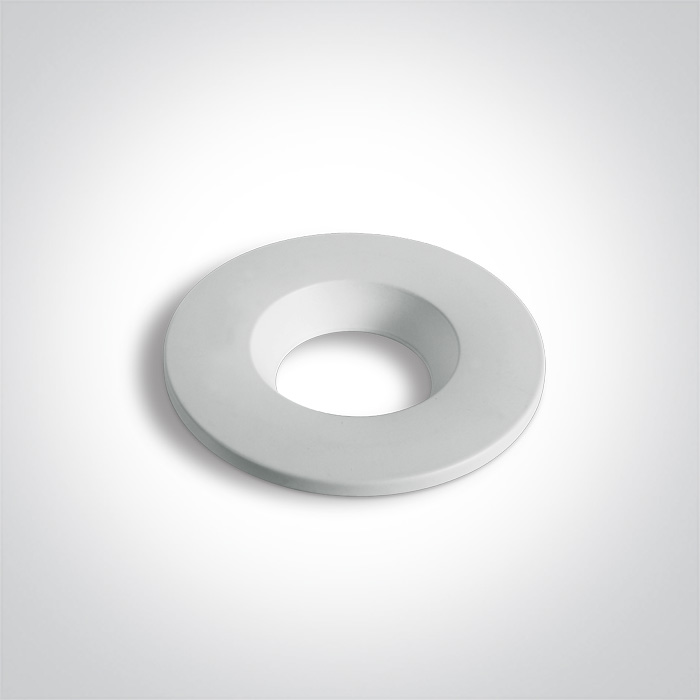

Complete with white ring.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Triac dimmable LED driver.
Complete with white ring.
Complies with standard EN60598-1 and any other specific standards.

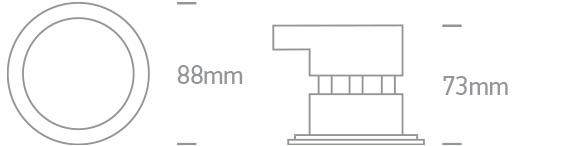

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Fire Rated IP65 Range
Order Code
10107DF/W
Colour
White
Material
Metal
Shape
Circular
Height
65mm
Diameter
78mm
Cutout Hole Diameter
65mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
7W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Safety Class
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
71,42lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Packing Info
Box Weight
0.283kg
Pcs/Carton
36
Barcode
5291889063193
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
