02 Recessed Spots Fixed LED > The Trimless 6,5W Range CCTV
.jpg)

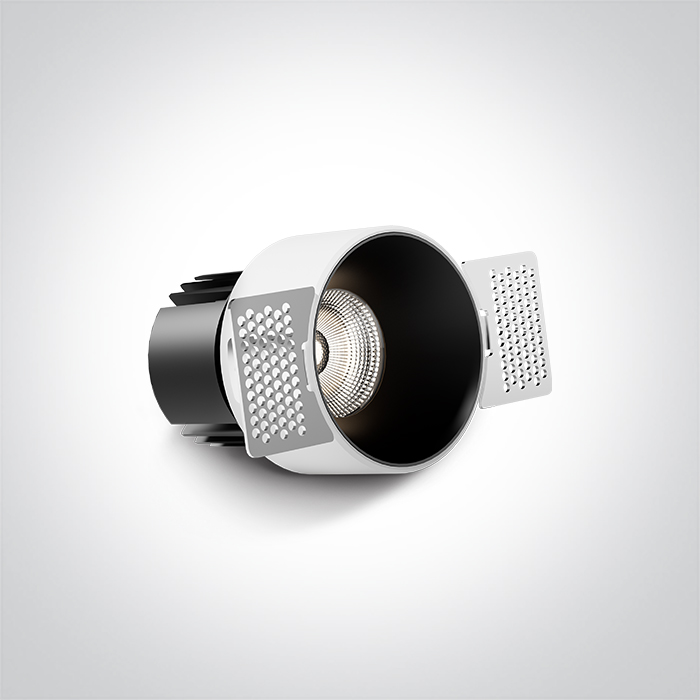

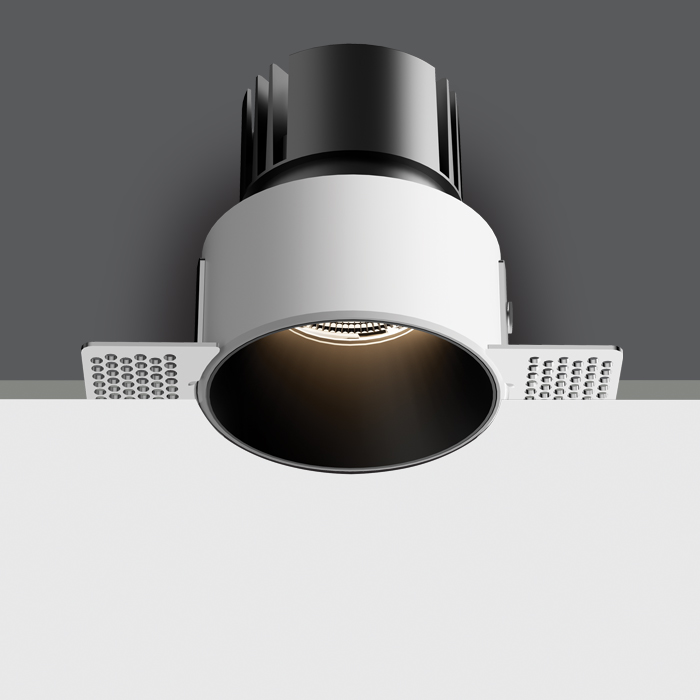

10107BT/B/V
6,5W CCT Variable LED Trimless recessed downlight, IP54.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Trimless 6,5W Range CCTV
Order Code
10107BT/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
84mm
Diameter
75mm
Cutout Hole Diameter
83mm
Recessed trimmless ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
650lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.510kg
Pcs/Carton
30
Barcode
5291889083436
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
