02 Recessed Spots Fixed LED > Semi Recessed Range

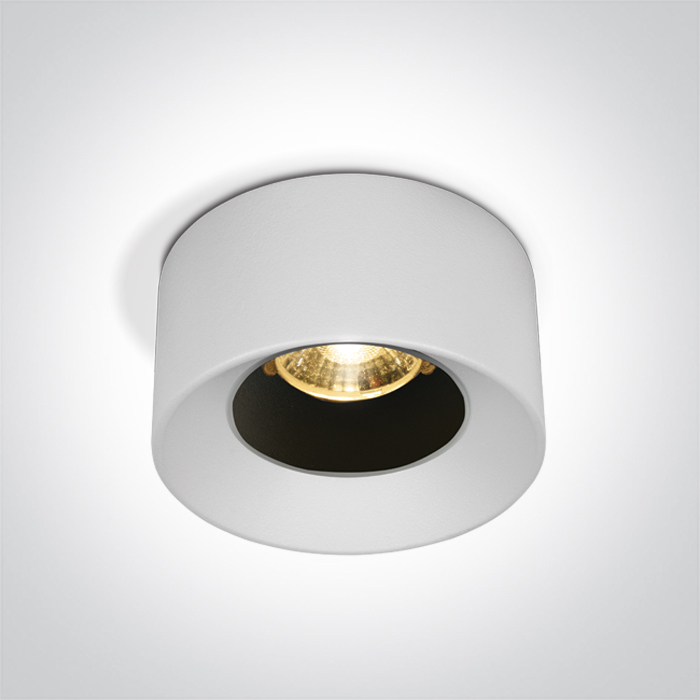

10107A/W/W
7W semi-recessed spot, IP20.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Semi Recessed Range
Order Code
10107A/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
57mm
Diameter
65mm
Cutout Hole Diameter
54mm
Recessed Ceiling
Yes
Depth Required
40mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
180mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.264kg
Pcs/Carton
50
Barcode
5291889080145
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
