02 Recessed Spots Fixed LED > The Fire Rated IP65 Range
10106PF/W

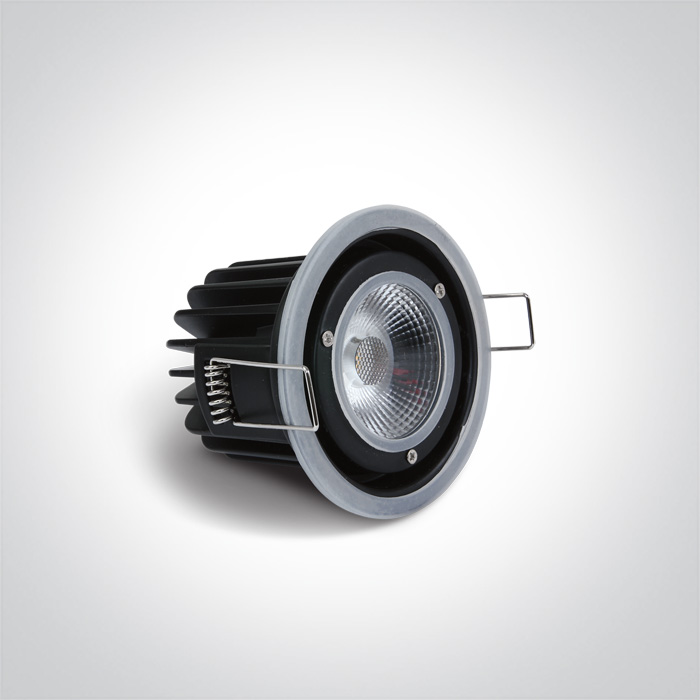

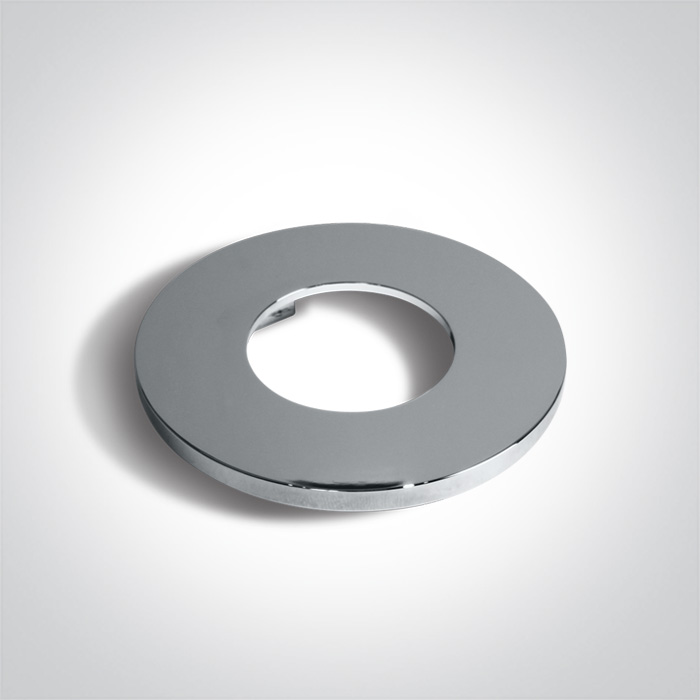

6W COB LED fire rated recessed spot IP65 with interchangeable rings.
Requires 350mA driver. Ring must be ordered seperately.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver. Ring must be ordered seperately.
Complies with standard EN60598-1 and any other specific standards.

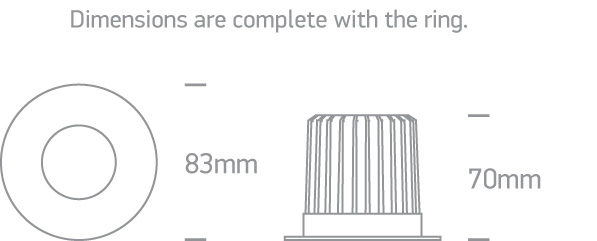

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Fire Rated IP65 Range
Order Code
10106PF/W
Material
Die Cast
Shape
Circular
Height
70mm
Diameter
83mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
83,33lm/W
CRI
80
Beam Angle
40°
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
10cm
Box Height
8,5cm
Box Weight
0.315kg
Pcs/Carton
20
Barcode
5291889047056
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
