05 Downlights Fixed > The Honeycomb Dark Light CCT V
.jpg)
.jpg)
10106DH/W/V

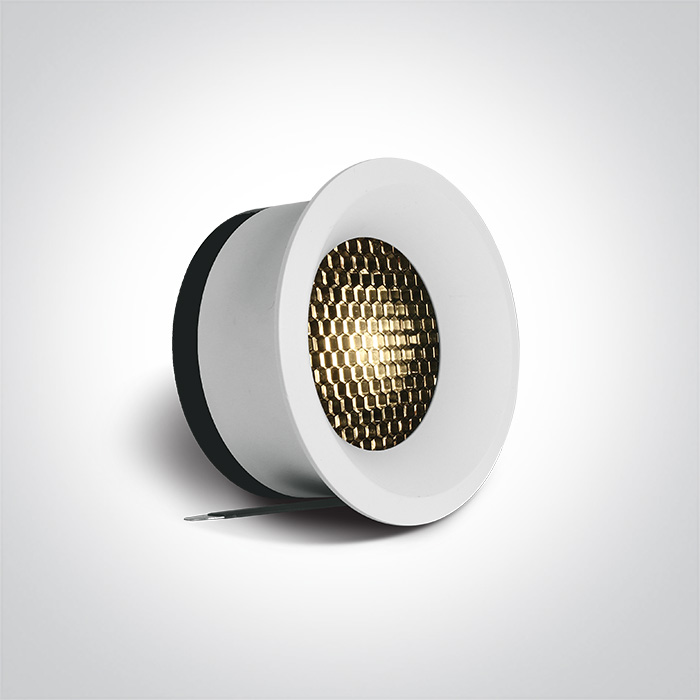

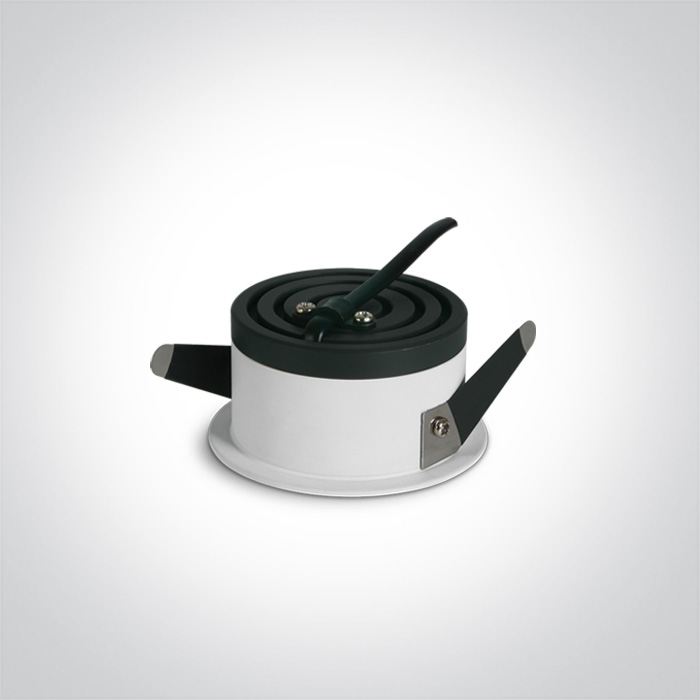

6,5W CCT Variable COB recessed spot with honeycomb.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The Honeycomb Dark Light CCT V
Order Code
10106DH/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
70mm
Cutout Hole Diameter
63mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
500lm
Light Efficiency
76,92 lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.180kg
Pcs/Carton
50
Barcode
5291889081838
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
