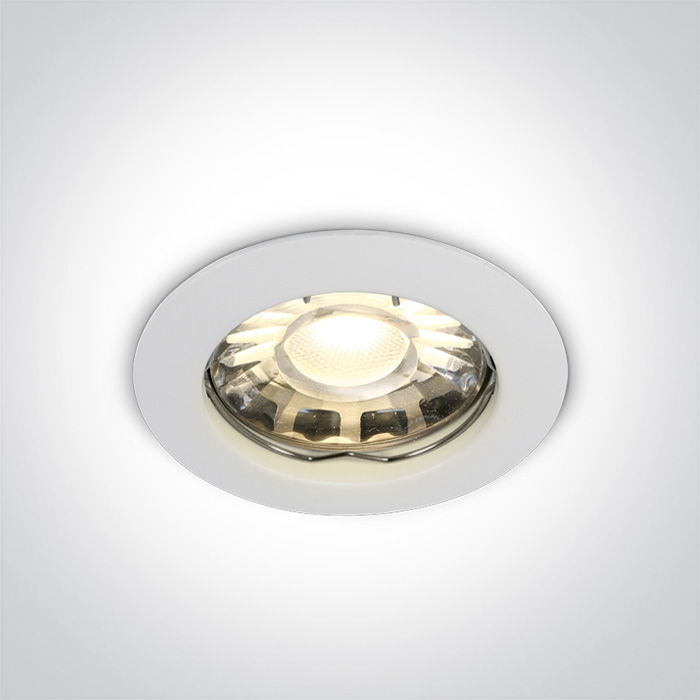

01 Recessed Spots Fixed > The Classic MR16
10105X/W
Recessed classic MR16 with GU5,3 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

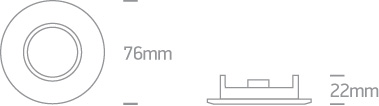

Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Classic MR16
Order Code
10105X/W
Colour
White
Material
Die Cast
Shape
Circular
Height
22mm
Diameter
76mm
Cutout Hole Diameter
63mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC/DC
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU5.3
Number of Lamps
1
LED Number
0
Cable Length
40cm
Illumination Data
Illumination Diagram
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
4cm
Box Weight
0.070kg
Pcs/Carton
100
Barcode
5291889001386
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
