02 Recessed Spots Fixed LED > The Dark Light Pro Range Aluminium

10105FD/B/W

Gallery
10105FD/B/W
10105FD/B/W

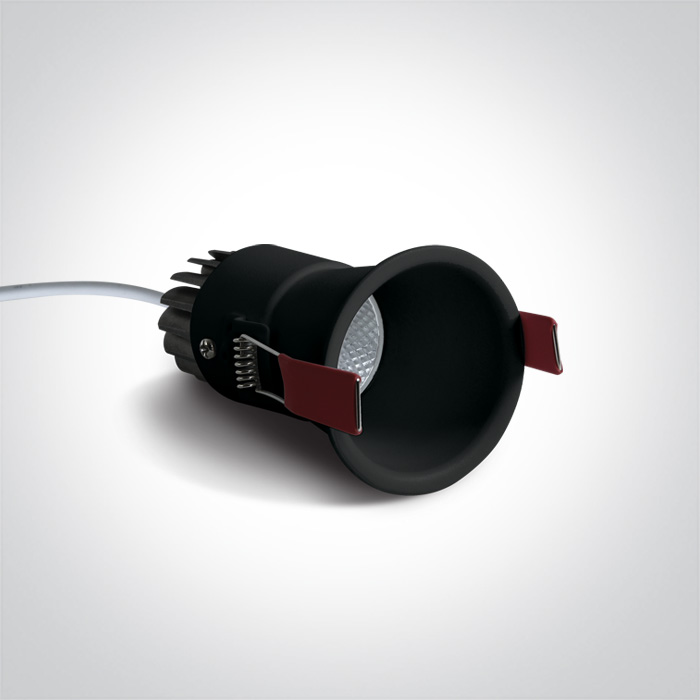

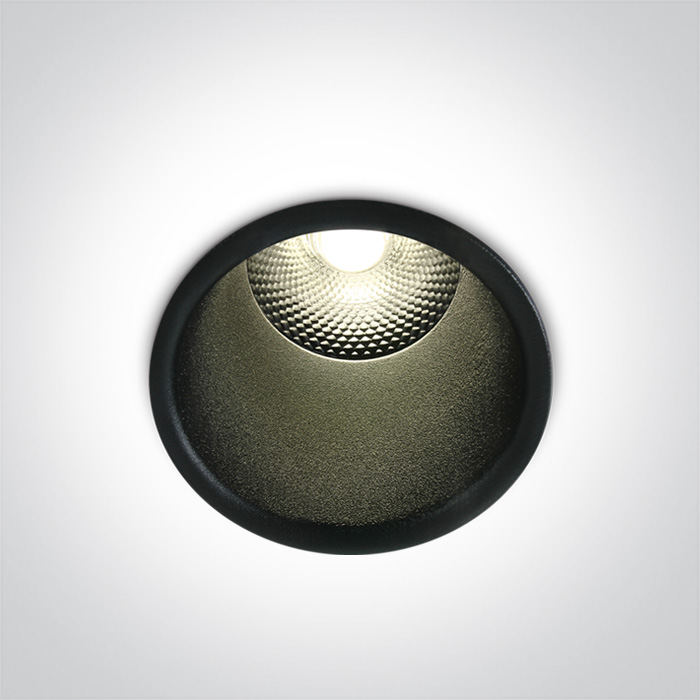

5W COB LED recessed spot, IP20, for general lighting applications.

Supplied with non-dimmable LED driver. Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Dark Light
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
02 Recessed Spots Fixed LED
Family
The Dark Light Pro Range Aluminium
Order Code
10105FD/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
95mm
Diameter
55mm
Cutout Hole Diameter
50mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
5W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
14,9V
Safety Class
Power (Watts)
4,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-7,25W
Power Factor
0,9
Constant Current
Yes
300mA
14-24v
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic

Illumination Data

+
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
60lm/W
CRI
80
Beam Angle
24°
Illumination Diagram
Dark Light
Yes

Packing Info

+
Box Length
9cm
Box Width
7cm
Box Height
12cm
Box Weight
0.190kg
Pcs/Carton
50
Barcode
5291889057352
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
