01 Recessed Spots Fixed > The Dark Light Dual Ring Range Aluminium

10105ALG/W/B

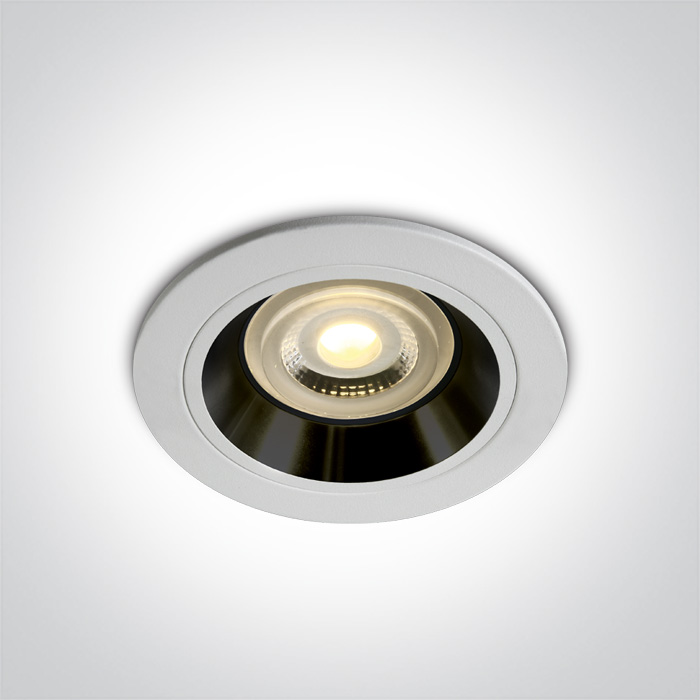

Dark Light Recessed MR16 spot with GU10 lampholder.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
Dark Light
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
01 Recessed Spots Fixed
Family
The Dark Light Dual Ring Range Aluminium
Order Code
10105ALG/W/B
Colour
White-Black
Material
Aluminium
Shape
Circular
Height
30mm
Diameter
92mm
Cutout Hole Diameter
78mm
Recessed Ceiling
Yes
Depth Required
150mm
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark

Illumination Data

+
Illumination Diagram
Dark Light
Yes

Packing Info

+
Box Length
10cm
Box Width
10cm
Box Height
5cm
Box Weight
0.226kg
Pcs/Carton
50
Barcode
5291889063049
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
