02 Recessed Spots Fixed LED > The IP65 Range

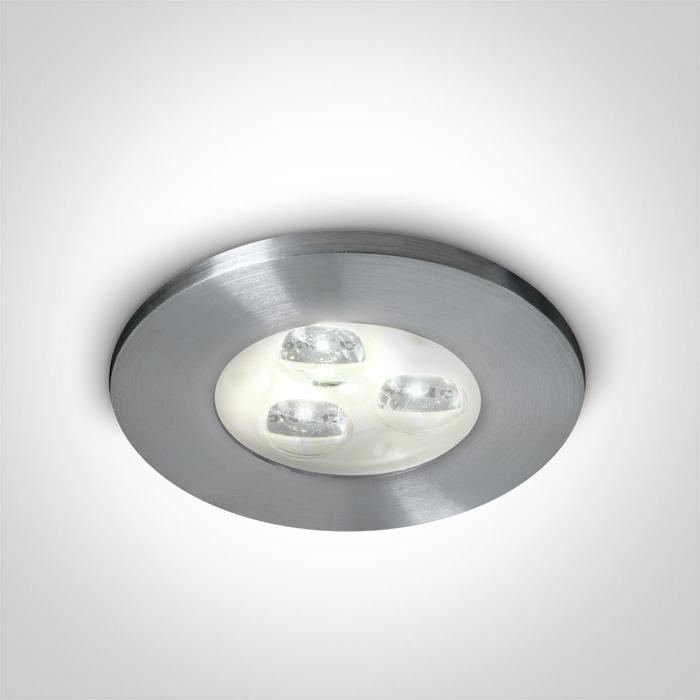

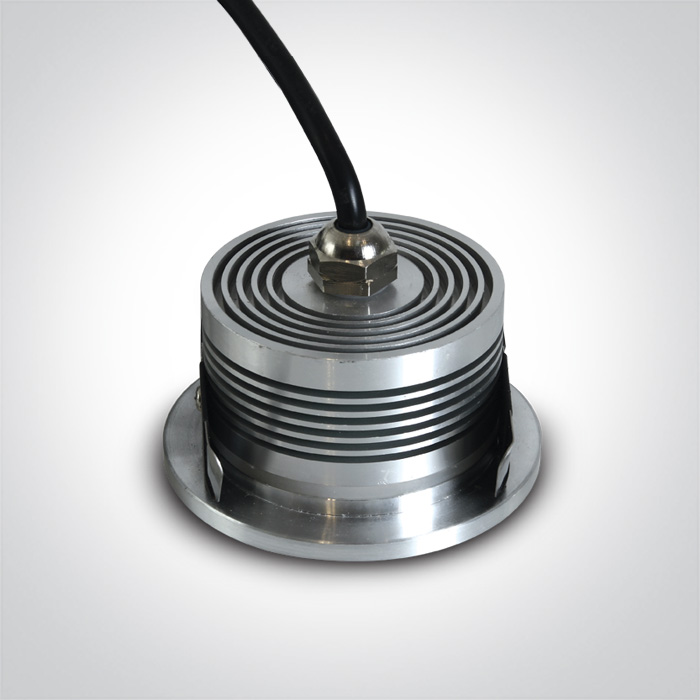

10103NP/AL/W/35
3x1W LED recessed spot IP65.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

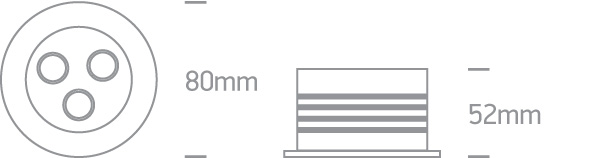

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Range
Order Code
10103NP/AL/W/35
Colour
Aluminium
Material
Natural Aluminium
Shape
Circular
Height
52mm
Diameter
80mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
3x1W
IP Rating
IP65
Light Source
LED built in
LED Number
1
Cable Length
200cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
135lm@700mA
Light Efficiency
45lm/W
Beam Angle
35°
Illumination Diagram
Packing Info
Box Weight
0.468kg
Pcs/Carton
50
Barcode
5291889025511
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
