02 Recessed Spots Fixed LED > The COB Dark Light Range
10103LB/B/W

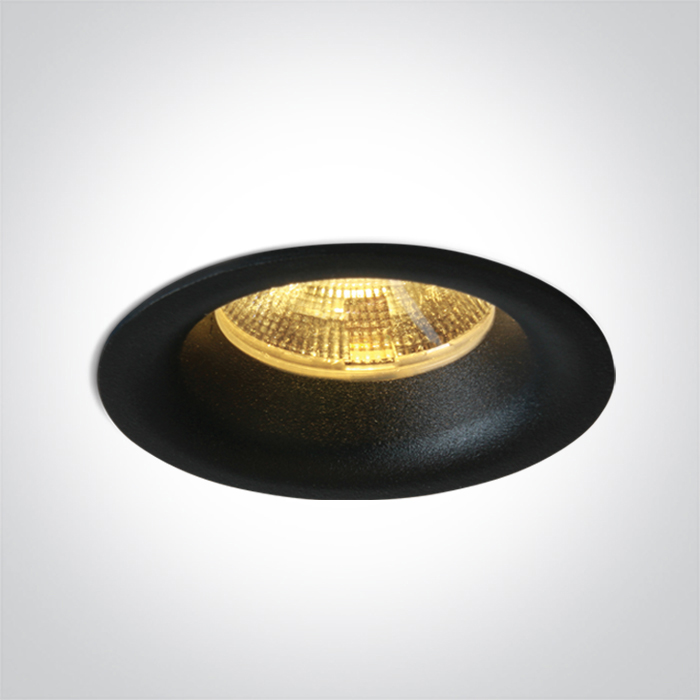

3W COB LED recessed spot suitable for indoor installation, IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

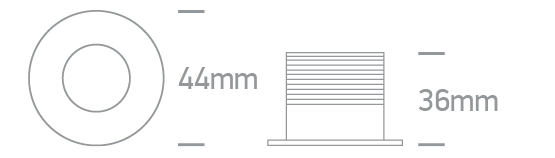

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB Dark Light Range
Order Code
10103LB/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
36mm
Diameter
44mm
Cutout Hole Diameter
38mm
Recessed Ceiling
Yes
Depth Required
55mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
100m/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.072kg
Pcs/Carton
100
Barcode
5291889081463
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
