02 Recessed Spots Fixed LED > The 3W Dark Light Range Aluminium

10103E/B/B/W

Gallery
10103E/B/B/W

Must be ordered separately

Related items
10103E/B/B/W

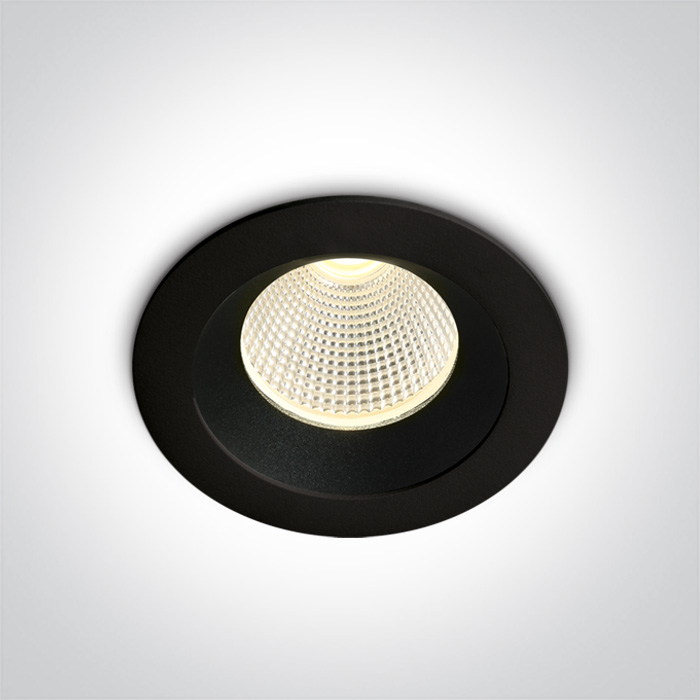

3W Recessed Dark Light LED spot IP20.

Requires 350mA driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Dark Light
Beam Angle
Quick Fix
CE
Dimensions
Downloads

Physical Specification

+
Item Group
02 Recessed Spots Fixed LED
Family
The 3W Dark Light Range Aluminium
Order Code
10103E/B/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
52mm
Diameter
50mm
Cutout Hole Diameter
44mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
8,7V
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark

Illumination Data

+
Colour Temperature
3000K
Lumen Output
240lm@3W
Light Efficiency
80lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes

Packing Info

+
Box Weight
0.094kg
Pcs/Carton
50
Barcode
5291889071112
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
