02 Recessed Spots Fixed LED > Mini Spots Aluminium

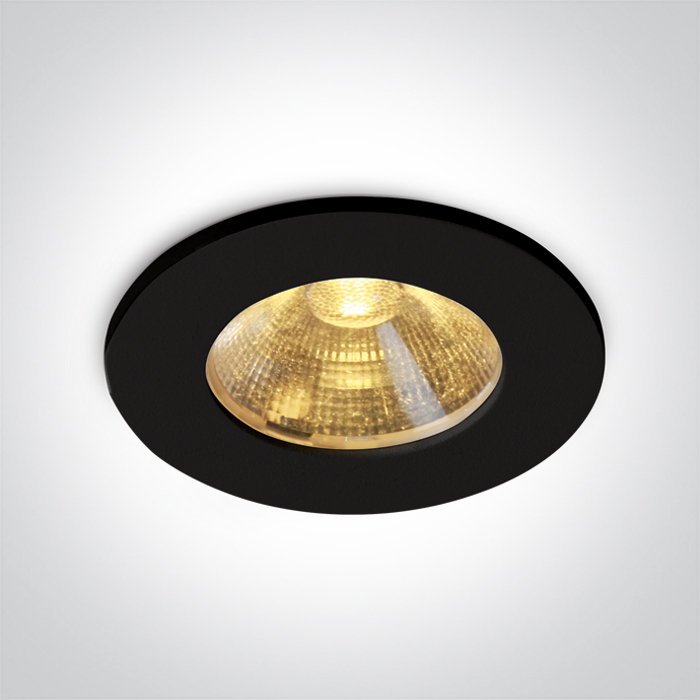

10103C/B/W
3W COB LED recessed spot suitable for indoor installation, IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

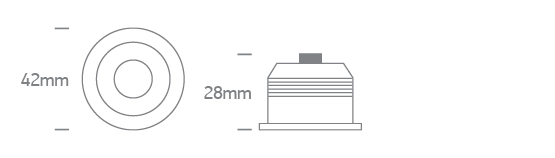

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Mini Spots Aluminium
Order Code
10103C/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
28mm
Diameter
42mm
Cutout Hole Diameter
36mm
Recessed Ceiling
Yes
Depth Required
38mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
100m/W
CRI
90
Beam Angle
40°
Illumination Diagram
Packing Info
Box Weight
0.066kg
Pcs/Carton
100
Barcode
5291889081470
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
