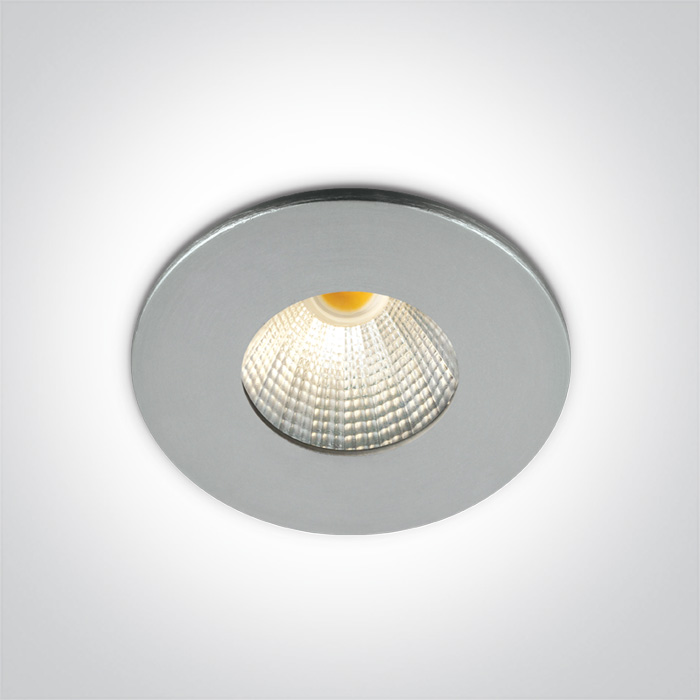

02 Recessed Spots Fixed LED > The 1W/2W LED Spots Aluminium
10103B/AL/W
1W/2W COB LED recessed spot IP20.
Requires 350mA/700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA/700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
.jpg)
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 1W/2W LED Spots Aluminium
Order Code
10103B/AL/W
Colour
Aluminium
Material
Aluminium
Shape
Circular
Height
35mm
Diameter
42mm
Cutout Hole Diameter
35mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA/700mA
Safety Class
Power (Watts)
1W/2W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 350+700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
200lm@700mA
Light Efficiency
100lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Packing Info
Box Length
9cm
Box Width
6cm
Box Height
5,5cm
Box Weight
0.071kg
Pcs/Carton
100
Barcode
5291889042440
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
