02 Recessed Spots Fixed LED > The IP65 Mini Range
10102H/W/V

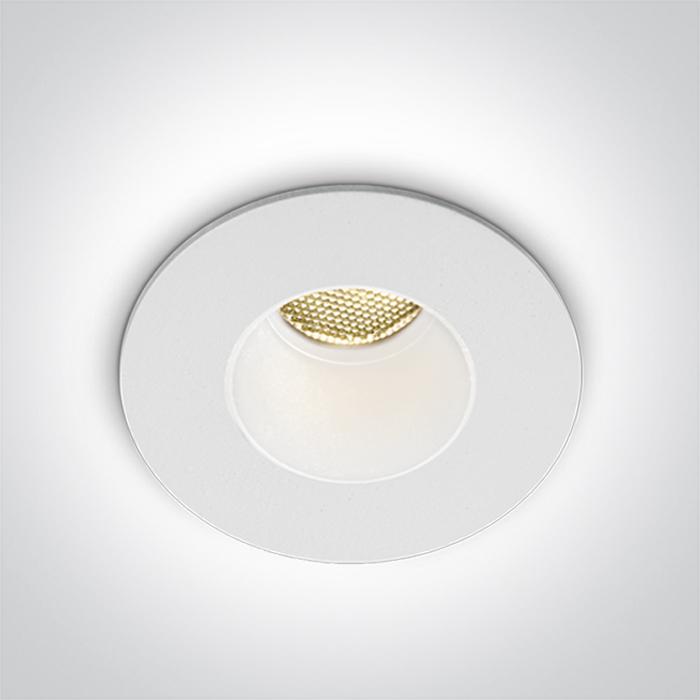

2W CCT Variable COB recessed spot .

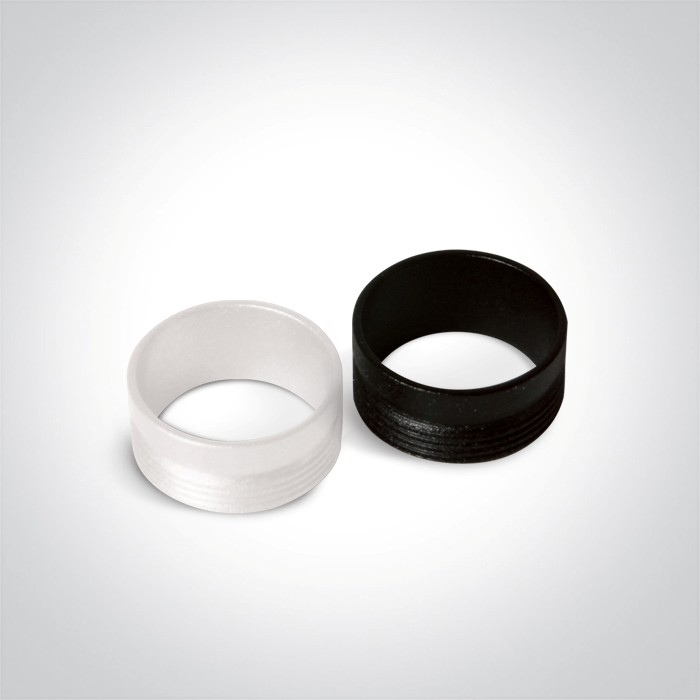

Complete with white & black reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with white & black reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Mini Range
Order Code
10102H/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
37mm
Cutout Hole Diameter
30mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
COB
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
350mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
160lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
30°
Illumination Diagram
Dark Light
Yes
Packing Info
Pcs/Carton
50
Barcode
5291889080602
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
