loader

06 Downlights Fixed LED > The Budget Downlight Range Aluminium

10115T/W/W

Gallery
10115T/W/W
10115T/W/W
10115T/W/W

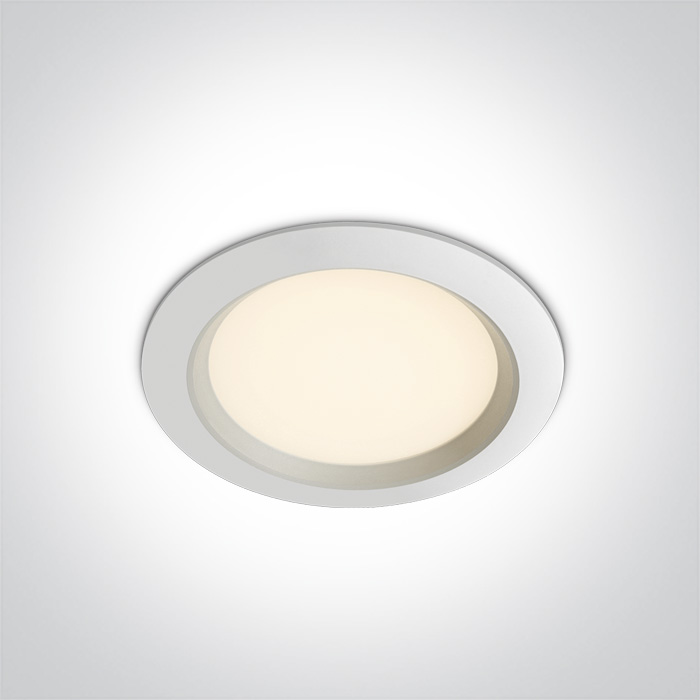

15W SMD LED recessed downlight, budget range, IP20.

Complete with 280mA driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
06 Downlights Fixed LED
Family
The Budget Downlight Range Aluminium
Order Code
10115T/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
43mm
Diameter
160mm
Cutout Hole Diameter
130mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
280mA
Voltage
45V
Safety Class
Power (Watts)
12,6W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
LED Number
30
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
11,7-17,7W
Power Factor
0,95
Constant Current
Yes
Voltage Range
42-63V
Output
280mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable

Illumination Data

+
Colour Temperature
3000K
Lumen Output
1050lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
120°
Illumination Diagram

Packing Info

+
Box Length
17cm
Box Width
17cm
Box Height
6cm
Box Weight
0.306kg
Pcs/Carton
30
Barcode
5291889045809
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
