06 Downlights Fixed LED > Floating Round Panels Range Adjustable Cut Out Hole
10114CE/C

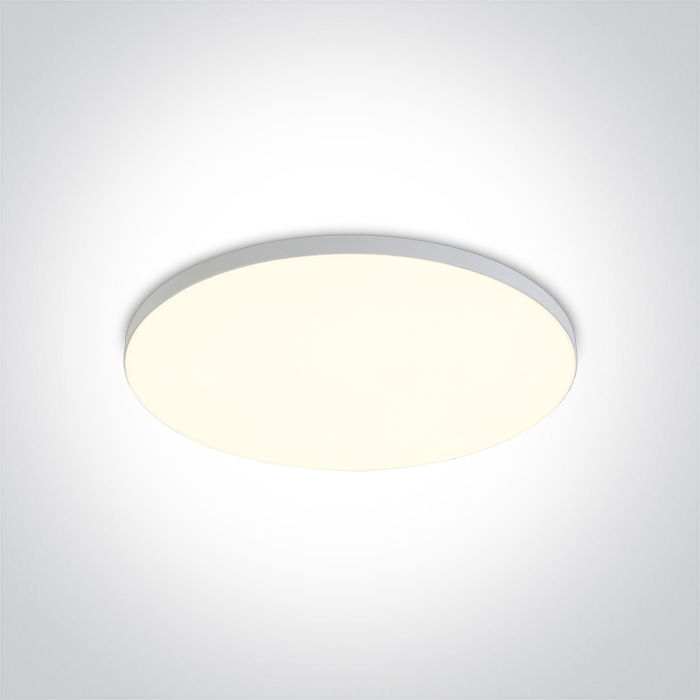

14W Downlight LED, IP20
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.

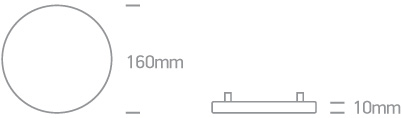

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
Floating Round Panels Range Adjustable Cut Out Hole
Order Code
10114CE/C
Colour
White
Material
Aluminium
Diffuser Material
PC
Shape
Circular
Height
10mm
Diameter
160mm

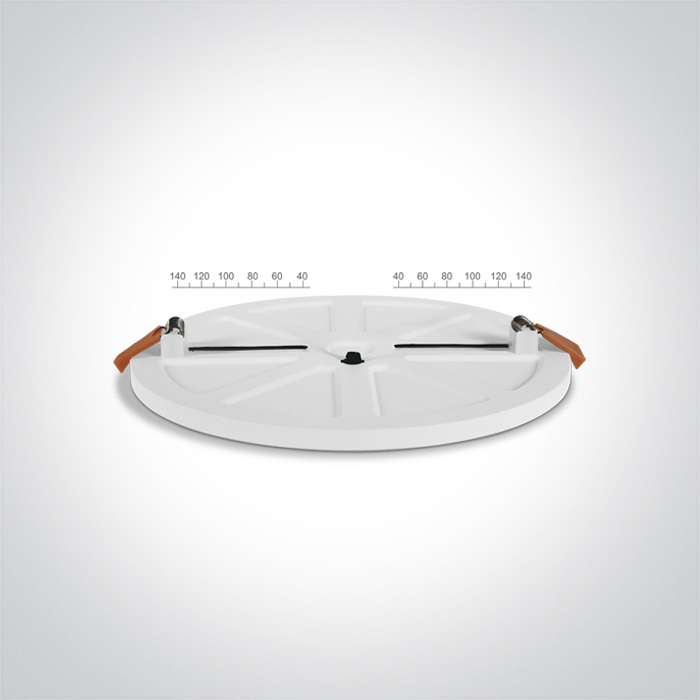

Cutout Hole Diameter
60mm-140mm
Recessed Ceiling
Yes
Depth Required
40mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
14W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
40V
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 4014
LED Brand
Zhaochi
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9-14W
Power Factor
0,5
Constant Current
Yes
300mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
1610lm
Light Efficiency
115lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.297kg
Pcs/Carton
40
Barcode
5291889065449
HS Code
9405413990
Energy Label
Energy Class
Energy Consumption
14kWh/1000h
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
